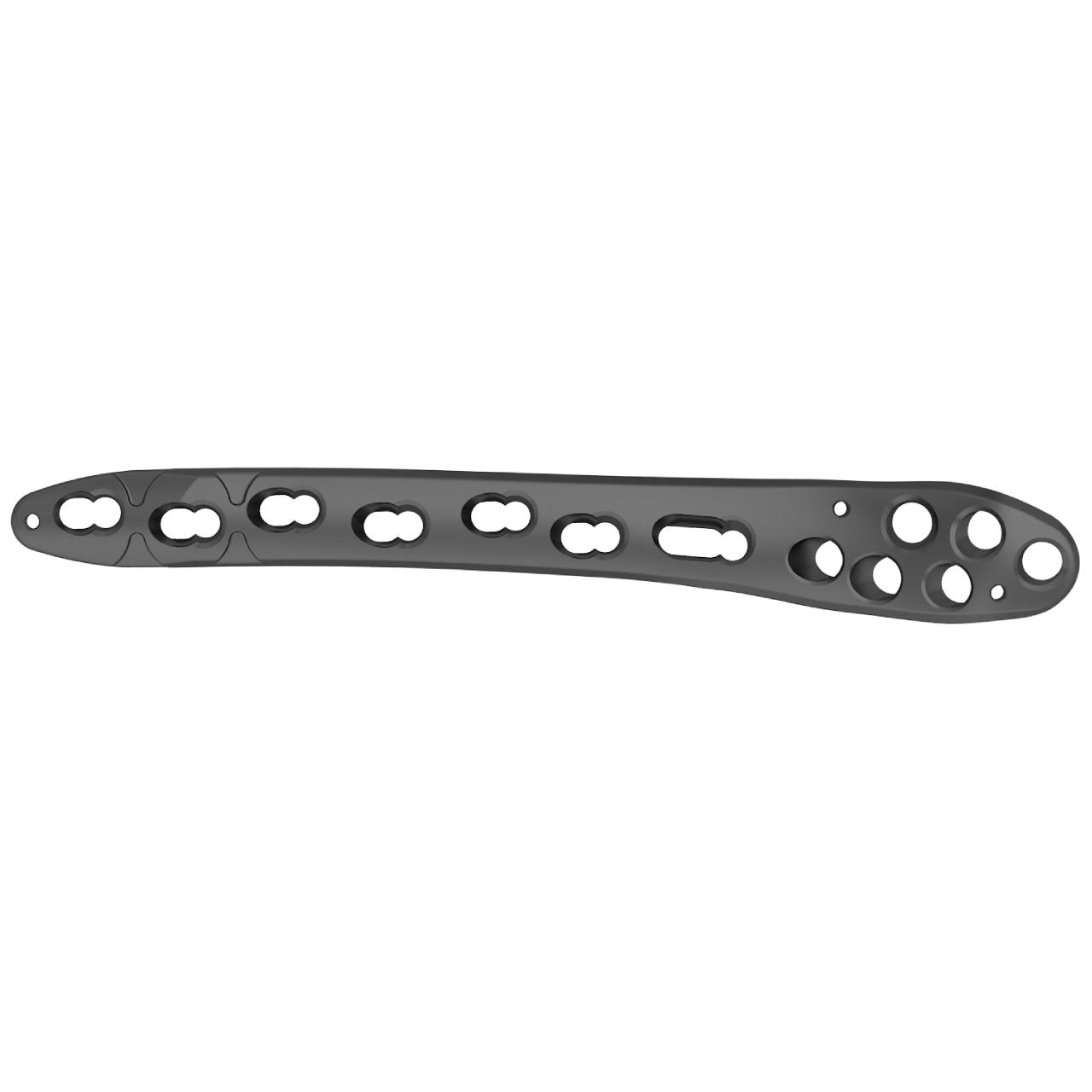

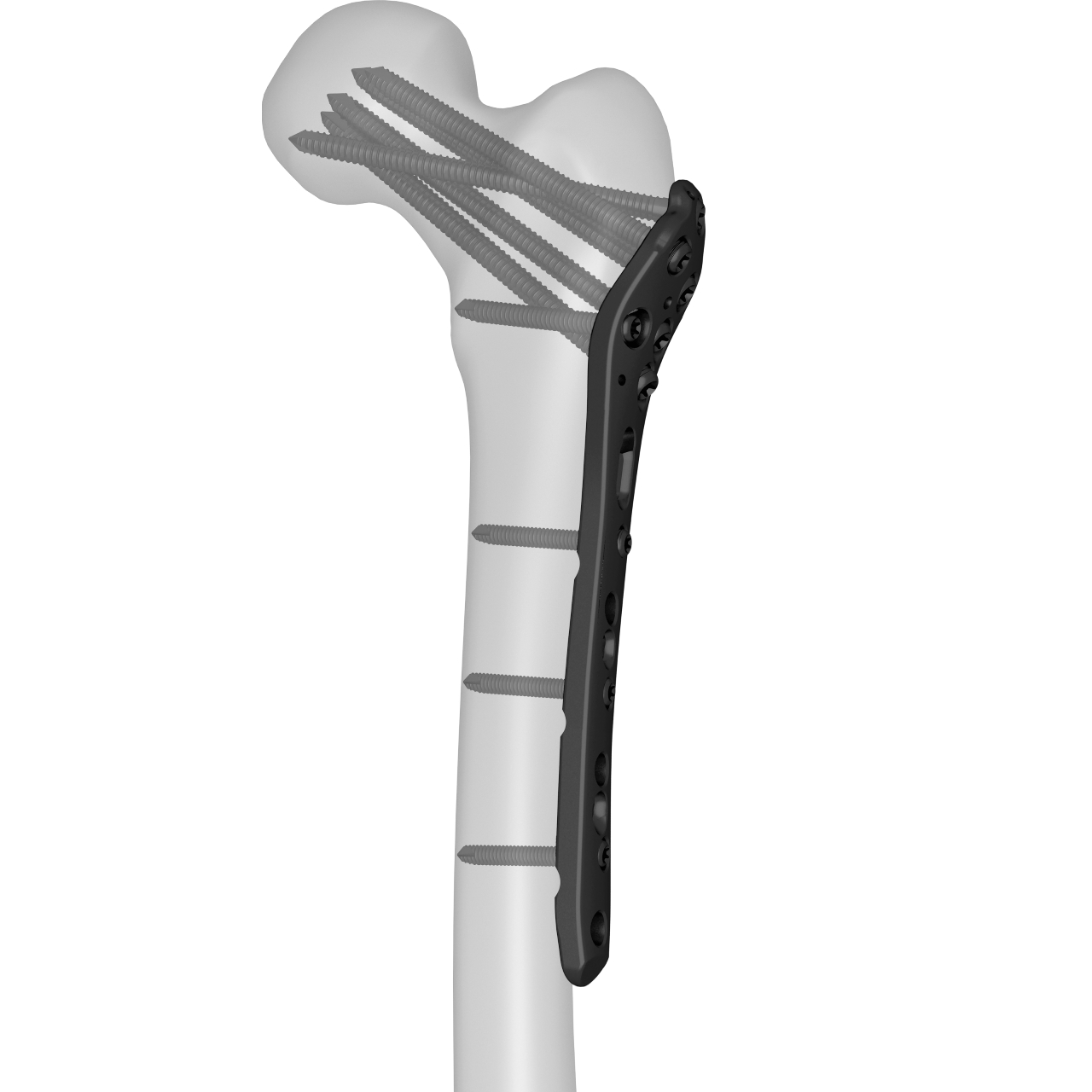

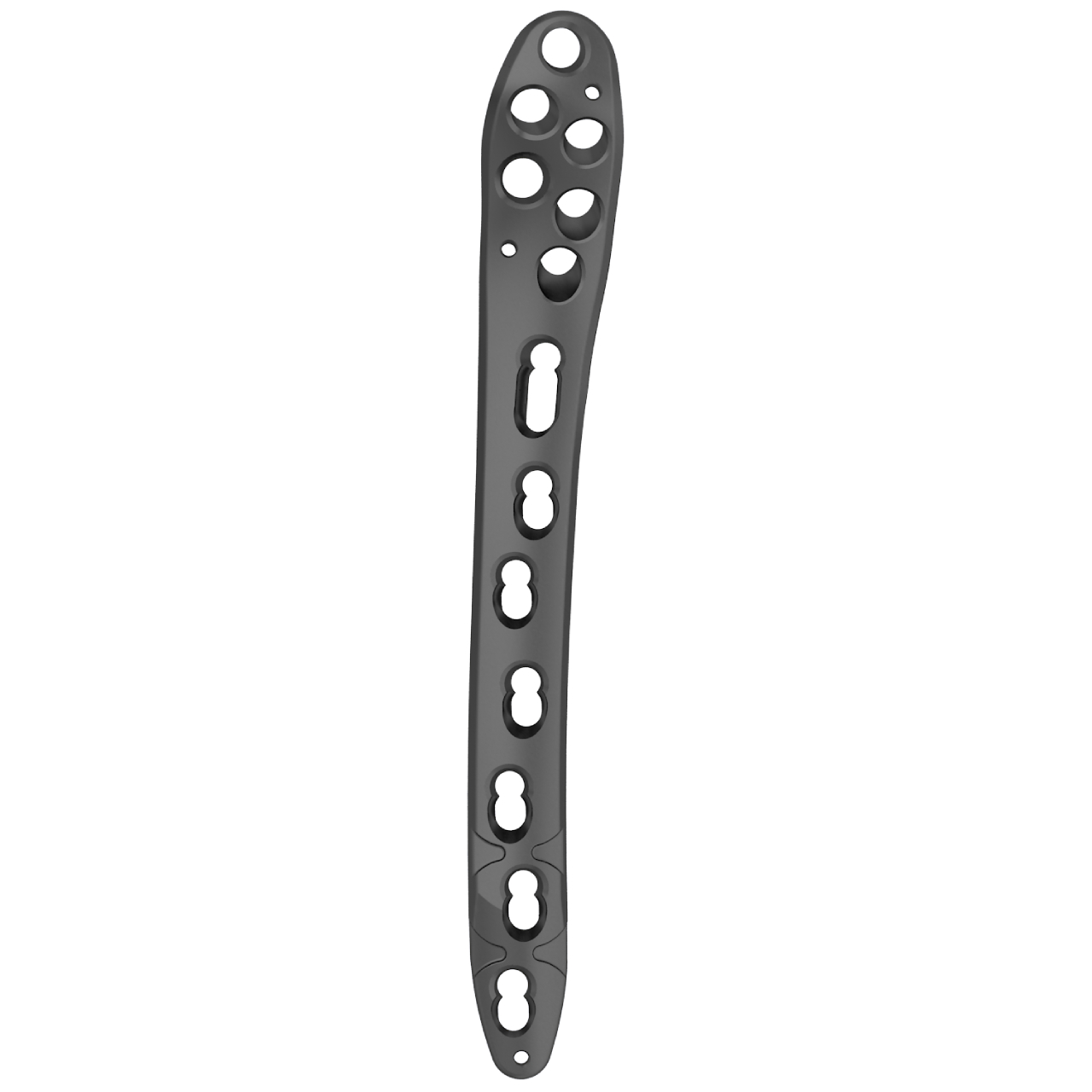

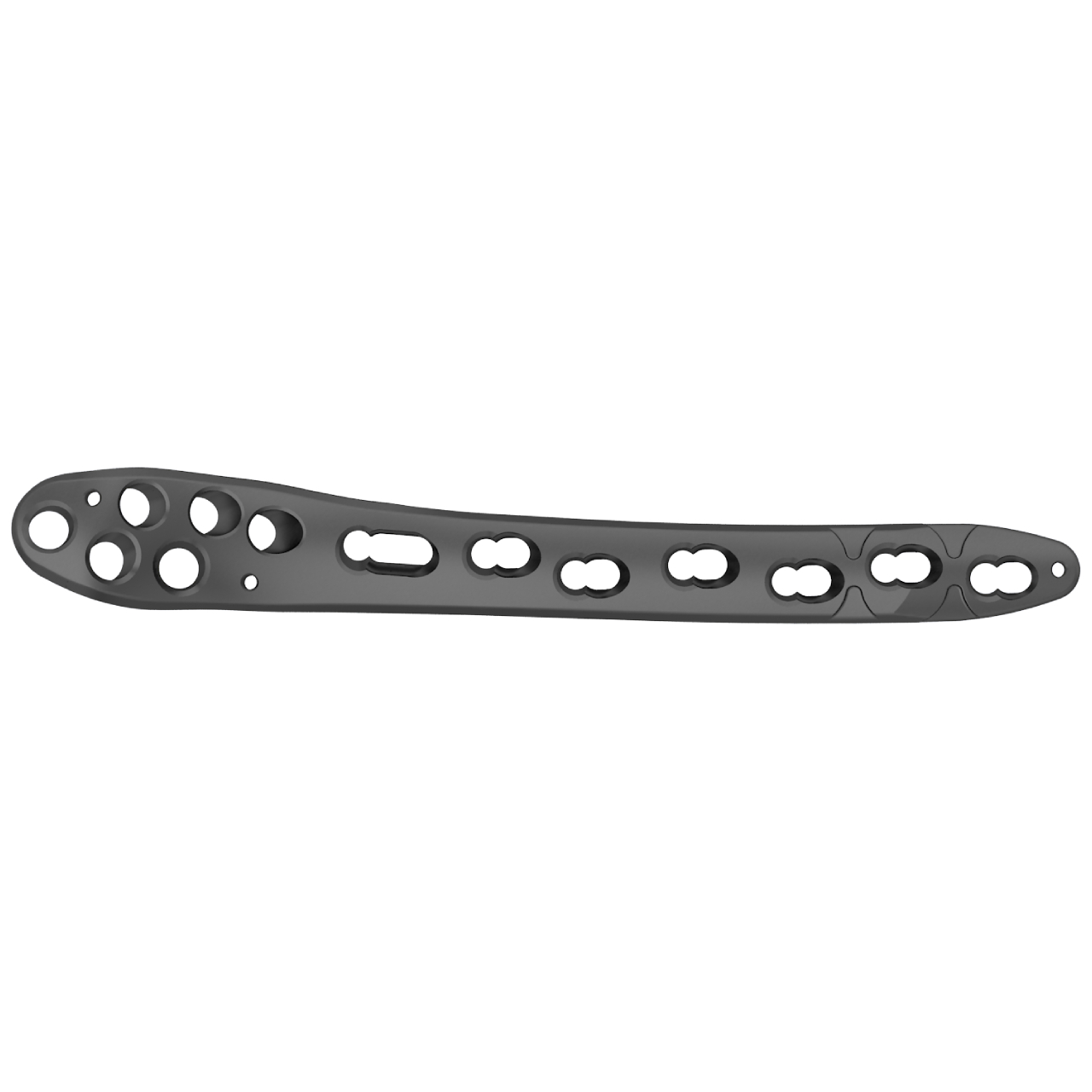

Proximal Femoral Locking Plate

Thickness: 5.6mm
Width: 17.6mm
Hole Spacing: 18mm
Material: Ti-6Al-4V
Screws:
– 4.5mm Cortex Screw
– 5.0mm Locking Screw
– 5.5mm Locking Screw
– 6.5mm Cannulated Locking Screw
Instrument: Proximal Femoral Locking Instrument Set
Manufacturer: Boneunion Medical
Series: Large Locking Plate
Part: Proximal
Bone: Femur

SKU: 301040 Categories: ,

Description

Proximal Femoral Locking Plate, left, 3 Holes, 119mm Length
Proximal Femoral Locking Plate, left, 4 Holes, 134mm Length
Proximal Femoral Locking Plate, left, 5 Holes, 153mm Length
Proximal Femoral Locking Plate, left, 6 Holes, 171mm Length
Proximal Femoral Locking Plate, left, 7 Holes, 188mm Length
Proximal Femoral Locking Plate, left, 8 Holes, 206mm Length
Proximal Femoral Locking Plate, left, 9 Holes, 224mm Length
Proximal Femoral Locking Plate, left, 10 Holes, 243mm Length
Proximal Femoral Locking Plate, left, 11 Holes, 260mm Length
Proximal Femoral Locking Plate, left, 12 Holes, 278mm Length
Proximal Femoral Locking Plate, left, 13 Holes, 296mm Length
Proximal Femoral Locking Plate, right, 3 Holes, 119mm Length
Proximal Femoral Locking Plate, right, 4 Holes, 134mm Length
Proximal Femoral Locking Plate, right, 5 Holes, 153mm Length
Proximal Femoral Locking Plate, right, 6 Holes, 171mm Length
Proximal Femoral Locking Plate, right, 7 Holes, 188mm Length
Proximal Femoral Locking Plate, right, 8 Holes, 206mm Length
Proximal Femoral Locking Plate, right, 9 Holes, 224mm Length
Proximal Femoral Locking Plate, right, 10 Holes, 243mm Length
Proximal Femoral Locking Plate, right, 11 Holes, 260mm Length
Proximal Femoral Locking Plate, right, 12 Holes, 278mm Length
Proximal Femoral Locking Plate, right, 13 Holes, 296mm Length

Additional information

Weight N/A
Dimensions N/A
Direction

Left, Right

Holes

3 Holes, 4 Holes, 5 Holes, 6 Holes, 7 Holes, 8 Holes, 9 Holes, 10 Holes, 11 Holes, 12 Holes, 13 Holes
